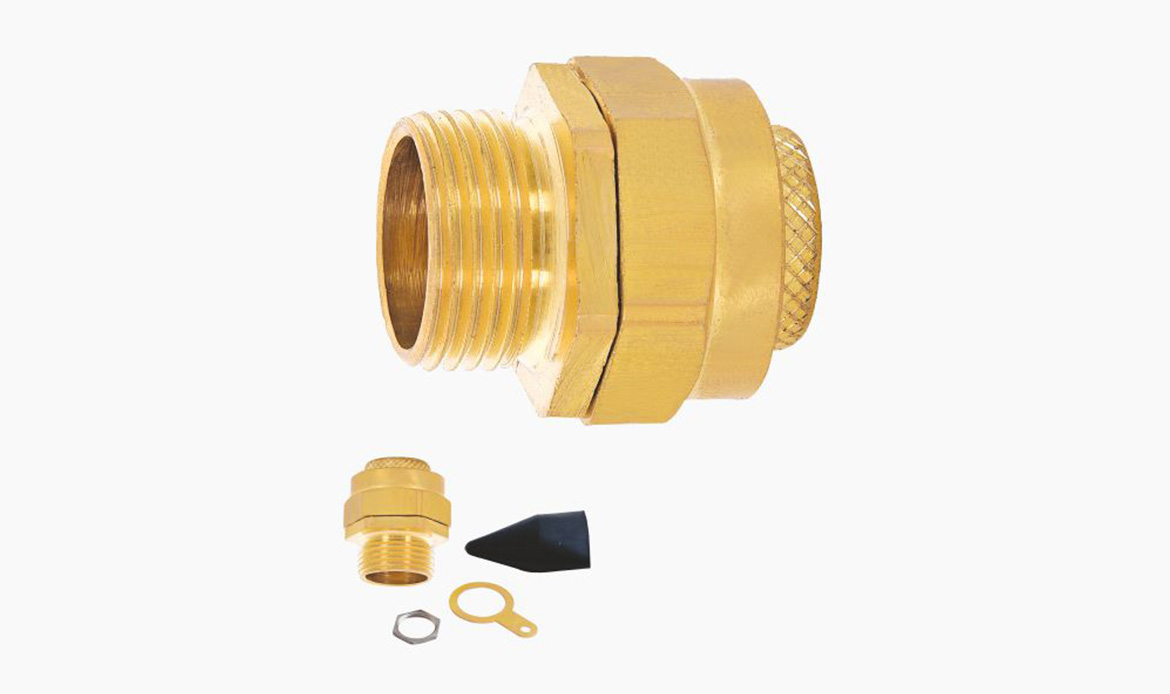

BWL Cable Gland

BWL Cable Gland





STANDARD :
B.S. 6121, Part-1 : 1989


APPLICATION :
Dry Indoor, for use with all type of SWA Cables


FUNCTION :
Provides for Armour Clamp Only

MECHANICAL : Provides retention of Armour or Brand Impact Resistant
GLAND SIZE
ENTRY THREAD
CABLE ACCEPTANCE DETAIL
ACROSS FLAT
ACROSS CORNER
DIA. C
LENGTH MINIMUM E
DIA. MAX. A
DIA. MAX. B
ARMOUR DIA. D
20 S
20
9
11.60
16.00
0.9/1.25
21.50
24.50
20 L
20
9
14.00
20.00
0.9/1.25
24.20
27.30
25 S
25
9
19.00
24.00
1.25/1.60
30.00
33.60
25 L
25
10
20.00
27.00
1.25/1.60
30.00
34.40
32 S
32
10
24.00
30.50
1.60/2.00
36.50
40.00
32 L
32
10
26.20
33.00
1.60/2.00
36.50
42.30
40 S
40
11
30.00
37.00
1.60/2.00
44.50
50.00
40 L
40
11
32.50
41.00
1.60/2.00
46.50
52.00
50 S
50
13
40.00
47.50
2.00/2.50
55.00
62.00
50 L
50
13
44.00
52.60
2.00/2.50
59.00
66.00
63 S
63
14
51.00
60.00
2.50
69.00
76.00
63 L
63
14
55.00
66.00
2.50
73.00
82.00
75 S
75
15
62.00
72.00
2.50
83.00
94.00
75 L
75
15
67.00
78.00
2.50
86.30
98.00
90 L
90
19
79.00
90.00
2.50/3.15
105.00
118.00

All Dimentions Are in Millimeter

Product Top

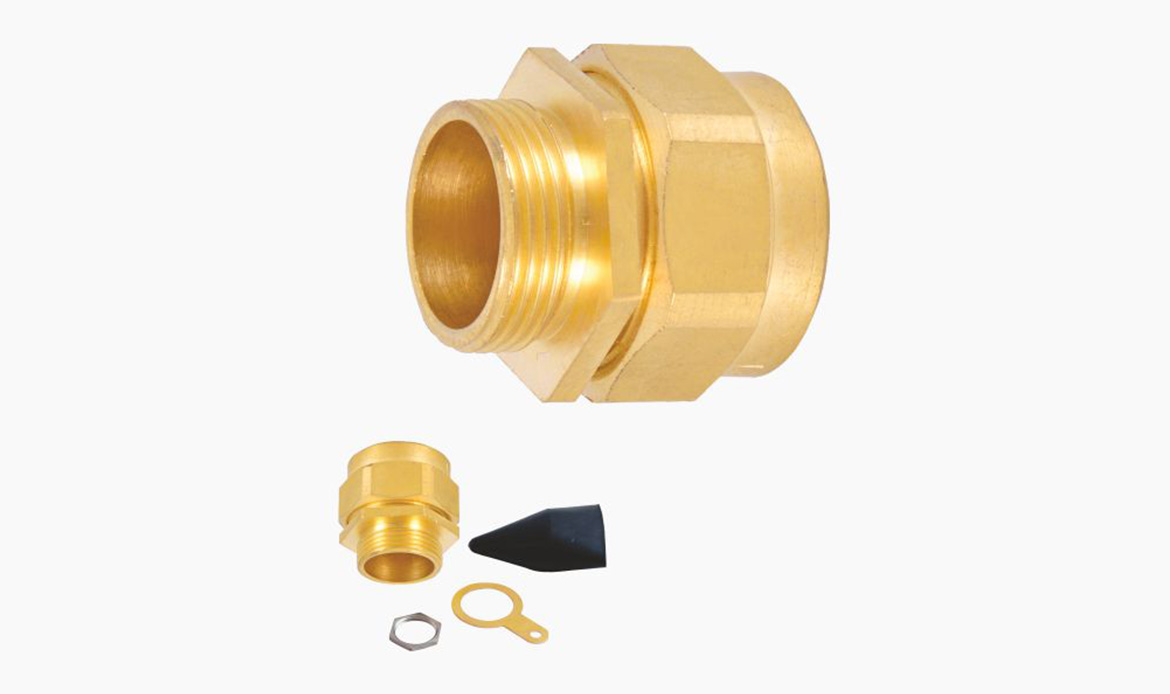

BW Cable Gland
BW Cable Gland

STANDARD : B.S. 6121, Part-1 : 1989

APPLICATION : Indoor, for use with all type of SWA Cables

FUNCTION : Provides for Armour Clamp Only

MECHANICAL
: Provides retention of Armour or Brand Impact Resistant



GLAND SIZE
ENTRY THREAD
CABLE ACCEPTANCE DETAIL
ACROSS FLAT
ACROSS CORNER
DIA. C
LENGTH MINIMUM E
DIA. MAX. A
DIA. MAX. B
ARMOUR DIA. D
20 S
20
10
12.00
16.00
0.9/1.25
21.00
23.40
20 L
20
10
15.00
20.00
0.9/1.25
24.00
26.80
25 L
25
10
20.00
26.00
1.25/1.60
31.70
35.00
32 L
32
10
26.30
32.50
1.60/2.00
39.80
45.00
40 L
40
12
32.30
40.00
1.60/2.00
49.50
56.00
50 L
50
13
44.00
53.20
2.00/2.50
60.50
68.50
63 L
63
13
55.00
66.00
2.50
76.00
85.80
75 L
75
16
67.00
78.00
2.50
89.50
100.00
90 L
90
18
79.00
90.00
2.50/3.15
104.30
117.00

All Dimentions Are in Millimeter

Product Top

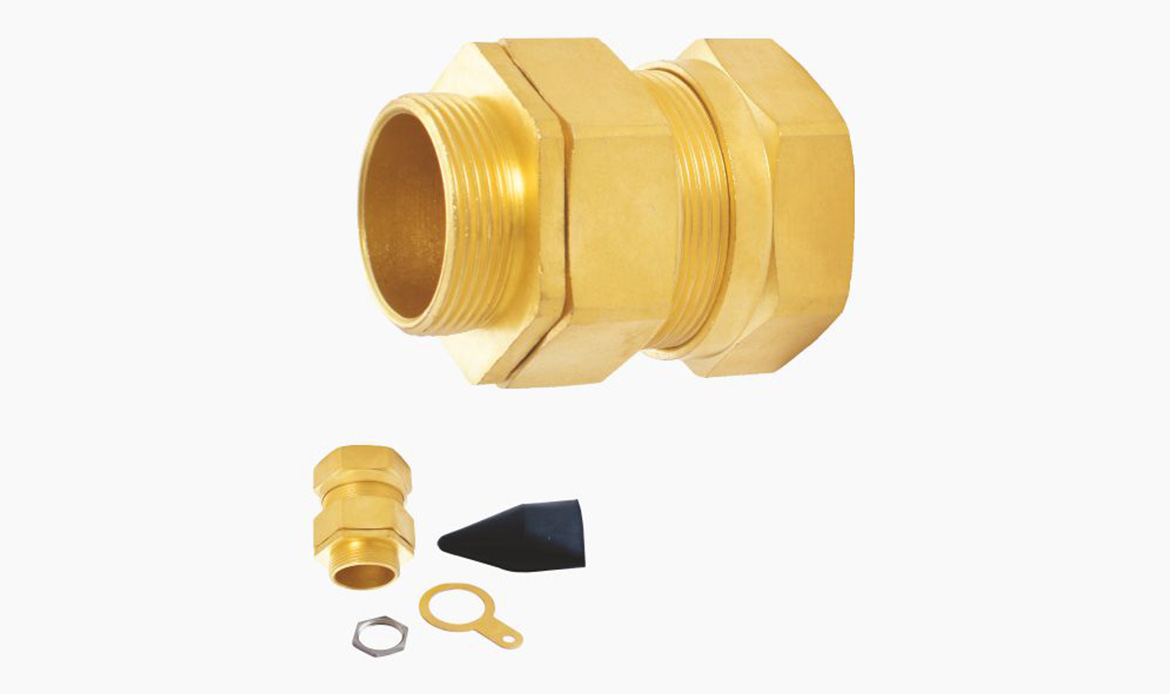

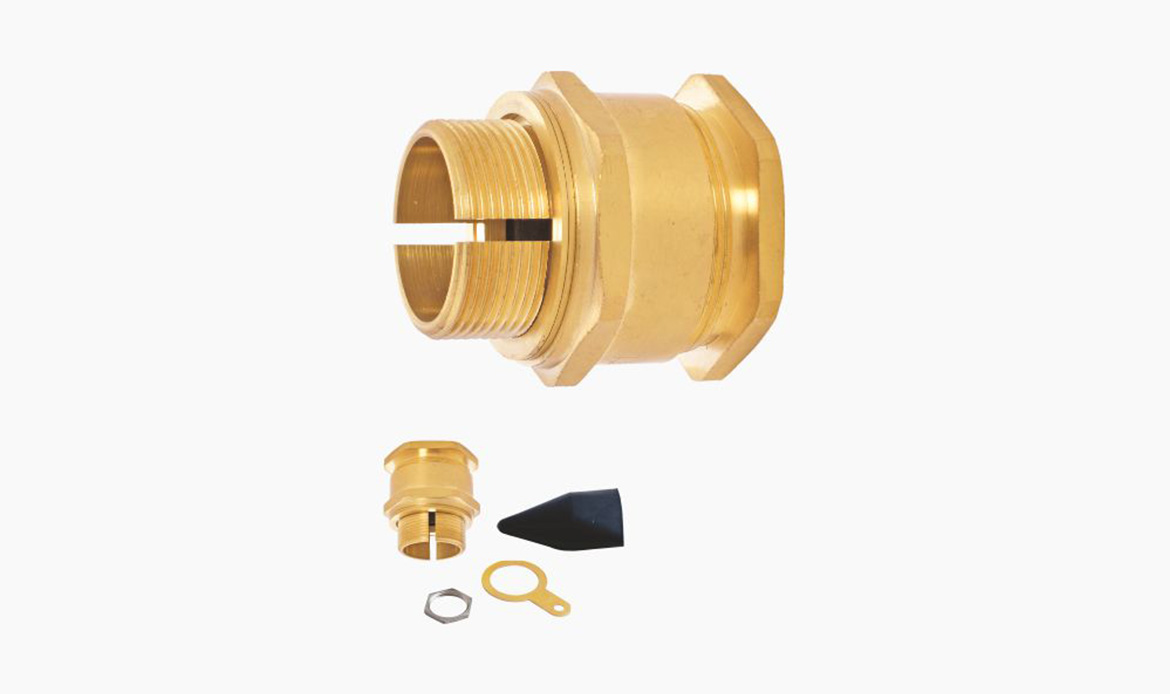

CW Cable Gland
CW Cable Gland


STANDARD : B.S. 6121, Part-1 : 1989

APPLICATION : Outdoor or Indoor, for use with all type of SWA Cables

FUNCTION : Provides for Armour Clamp, Provides seal on outer Sheath of cable

MECHANICAL : Provides retention of Armour or Brand Impact Resistant

GLAND SIZE
ENTRY THREAD
CABLE ACCEPTANCE DETAIL
ACROSS FLAT
ACROSS CORNER
DIA. C
LENGTH MINIMUME
DIA. MAX. A
DIA. MAX.B
ARMOUR DIA. D
20 S
20
10
11.60
16.00
0.9/1.25
22.00
25.00
20 L
20
10
14.00
20.00
0.9/1.25
25.40
28.50
25 S
25
10
19.00
24.00
1.25/1.60
30.00
33.60
25 L
25
10
20.00
27.00
1.25/1.60
33.00
37.00
32 S
32
10
24.00
30.50
1.60/2.00
38.00
43.00
32 L
32
10
26.20
33.00
1.60/2.00
40.00
45.00
40 S
40
11
30.00
37.00
1.60/2.00
44.50
50.00
40 L
40
11
32.50
41.00
1.60/2.00
46.50
52.00
50 S
50
13
40.00
47.50
2.00/2.50
55.00
62.00
50 L
50
13
44.00
52.60
2.00/2.50
59.00
66.00
63 S
63
14
51.00
60.00
2.50
69.00
76.00
63 L
63
14
55.00
66.00
2.50
73.00
82.00
75 S
75
15
62.00
72.00
2.50
83.00
94.00
75 L
75
15
67.00
78.00
2.50
87.60
99.00
90 L
90
20
79.00
90.00
2.50/3.15
105.00
118.00

All Dimentions Are in Millimeter

Product Top

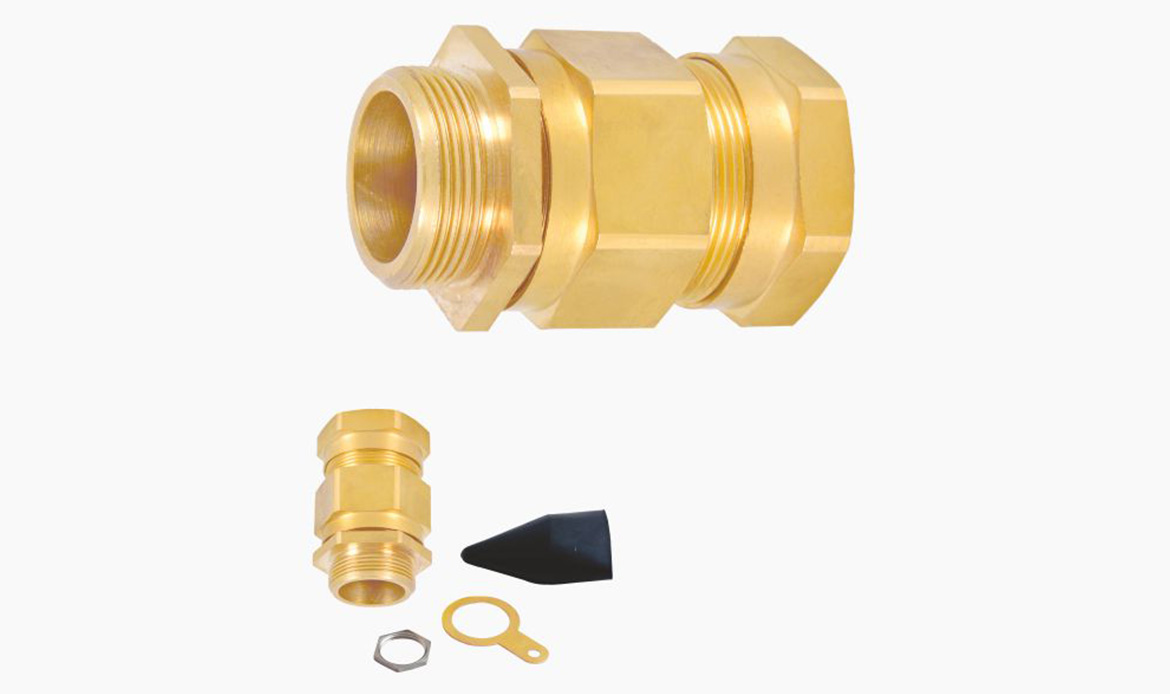

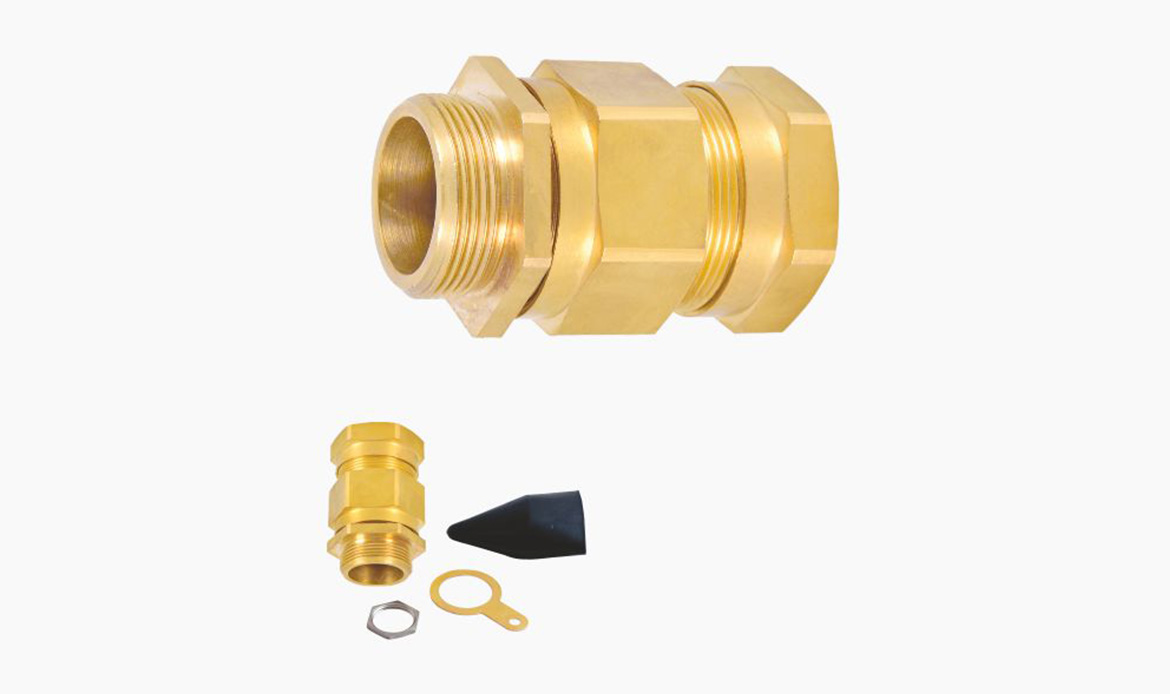

E 1W Cable Gland
E1W Cable Gland

STANDARD : B.S. 6121, Part-1 : 1989

APPLICATION : Indoor or Outdoor, for use with all type of SWA Extruded Bending Cable

FUNCTION : Provides for Armour Clamp, Provides seal Inner & Outer Sheath of cable

MECHANICAL : Provides retention of Armour or Brand Impact Resistant



GLAND SIZE
ENTRY THREAD
CABLE ACCEPTANCE DETAIL
ACROSS FLAT
ACROSS CORNER
DIA. C
LENGTH MINIMUM E
DIA. MAX. A
DIA. MAX. B
ARMOUR DIA. D
20 S
20
10
8.00-11.80
12.90-17.20
0.9/1.25
24.00
27.00
20 L
20
10
11.00-14.00
15.50-20.80
0.9/1.25
27.70
31.00
25 S
25
10
12.00-17.00
17.50-24.00
1.25/1.60
31.50
35.00
25 L
25
10
13.00-20.30
24.00-27.20
1.25/1.60
35.00
39.00
32 S
32
10
17.00-24.00
25.00-31.00
1.60/2.00
43.00
47.50
32 L
32
10
19.00-26.20
26.70-34.00
1.60/2.00
43.00
47.50
40 S
40
15
23.00-30.00
31.00-38.50
1.60/2.00
51.50
57.00
40 L
40
15
25.00-32.20
33.00-40.50
1.60/2.00
51.50
57.00
50 S
50
15
31.50-38.20
39.40-46.80
2.00/2.50
58.50
65.00
50 L
50
15
36.50-44.00
45.70-53.20
2.00/2.50
66.00
73.00
63 S
63
15
42.50-50.00
52.10-59.00
2.50
72.00
80.00
63 L
63
15
49.10-56.00
58.40-66.00
2.50
80.00
89.00
75 S
75
17
54.50-62.00
64.80-72.00
2.50
86.50
97.00
75 L
75
17
60.50-68.00
71.10-78.00
2.50
94.00
105.00
90 L
90
20
66.00-79.00
77.00-90.00
2.50/3.15
106.00
118.00

All Dimentions Are in Millimeter

Product Top

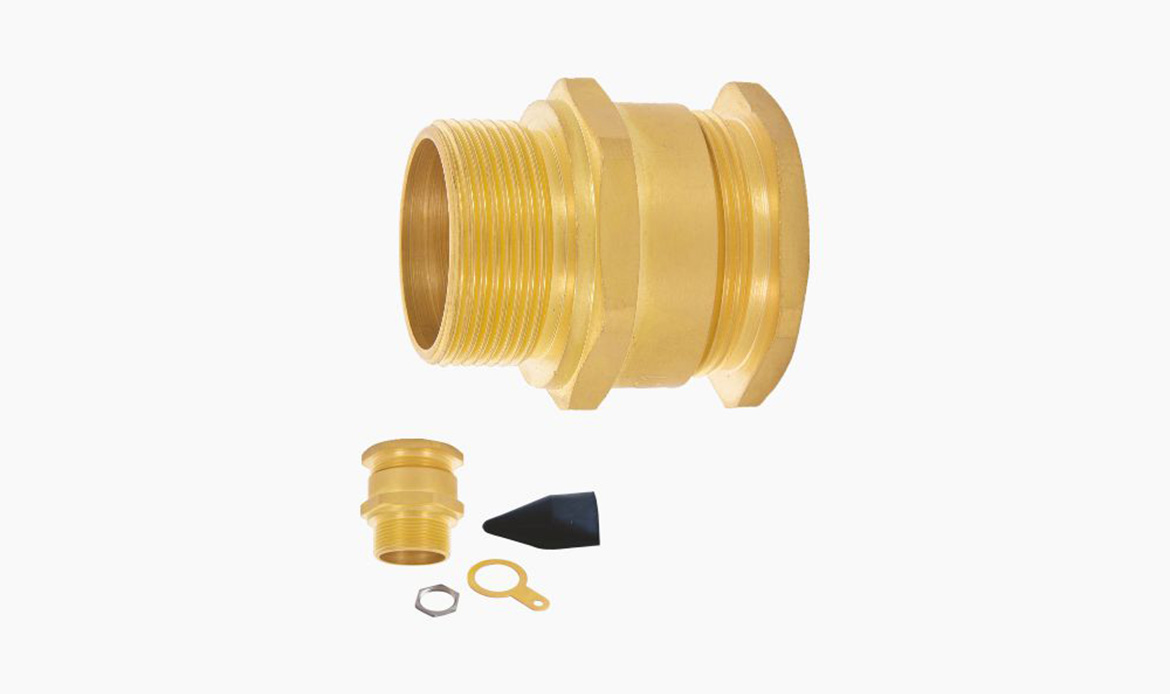

A-2 Cable Gland

A-2 Cable Gland












GLAND SIZE
ENTRY THREAD
DIA. MIN-MAX. A
ACROSS FLAT
ACROSS CORNER
DIA. B
LENGTH MINIMUM C
16 L
16
12
3.50-9.00
21.00
24.00
20 S
20
12
8.00-11.70
22.00
25.00
20 L
20
12
11.00-14.00
24.00
26.60
25 S
25
15
12.00-17.00
27.00
30.50
25 L
25
15
13.00-20.70
30.00
33.30
32 S
32
15
16.50-23.00
37.00
41.00
32 L
32
15
19.00-23.00
41.00
45.50
40 S
40
20
23.00-29.00
45.00
50.00
40 L
40
20
25.00-33.00
46.00
51.00
50 S
50
20
31.50-38.20
58.00
64.00
50 L
50
20
36.50-44.00
62.00
69.00
63 S
63
20
42.50-50.00
69.00
76.00
63 L
63
20
48.00-56.00
73.00
81.00
75 S
75
20
54.50-62.00
82.00
91.00
75 L
75
20
60.50-68.00
88.00
97.00
90 L
90
20
66.00-77.00
103.00
114.00

All Dimentions Are in Millimeter

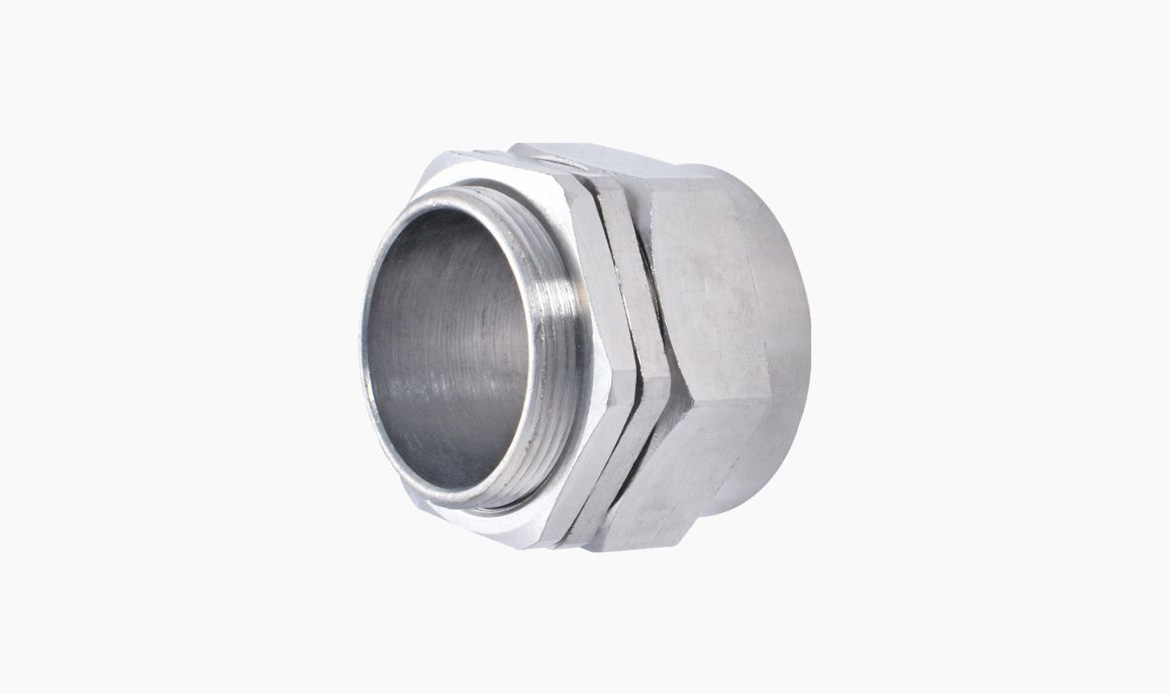

G Cable Gland












GLAND SIZE
ENTRY THREAD
CABLE ACCEPTANCE DETAIL
DIA. C
LENGTH MINIMUM E
CABLE DIA. A
CABLE DIA. B
ARMOUR DIA. D
G-204
20
9
11.50
17.00
0.90/1.25
G-206
20
9
13.80
20.00
0.90/1.25
G-254
25
9
16.30
22.50
0.90/1.25
G-256
25
9
18.80
26.00
1.25/1.60
G-324
32
10
22.80
30.00
1.25/1.60
G-326
32
10
26.50
33.00
1.60/2.00
G-405
40
12
32.50
41.50
1.60/2.00
G-503
50
15
39.00
49.00
2.00/2.50
G-505
50
15
44.50
55.00
2.00/2.50
G-636
63
15
56.00
67.50
2.50
G-753
75
17
61.00
72.50
2.50
G-755
75
17
67.50
79.00
2.50
All Dimensions Are in Millimeter
Cable Gland Pack

BW KIT

Kit includes Brass Cable Gland, Earth Tag, Steel Locknut/ Brass Locknut and PVC Shround

Kit contains Two Sets upto 32mm sizes & One Set for 40mm and above Sizes

CW KIT




LOCKNUT

P.V.C. SHROUD

EARTH TAG

Lock Nuts are available in Brass & Steel (Galv.) In Metalic, Inches, NPT, BSP & PG Threads.
PVC Shrouds available to suit each size of Cable Gland and denoted same Gland size reference number. LSF Shrouds are also available
Earth Tags are available from 16mm to 90mm

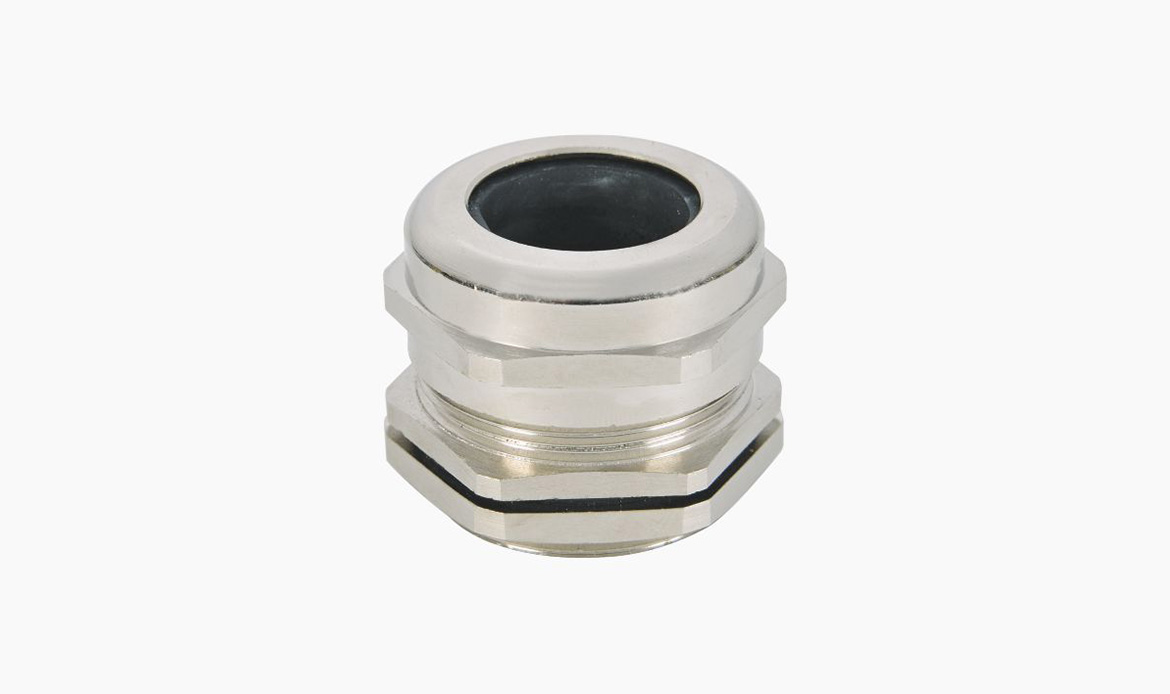

P.G. GLAND

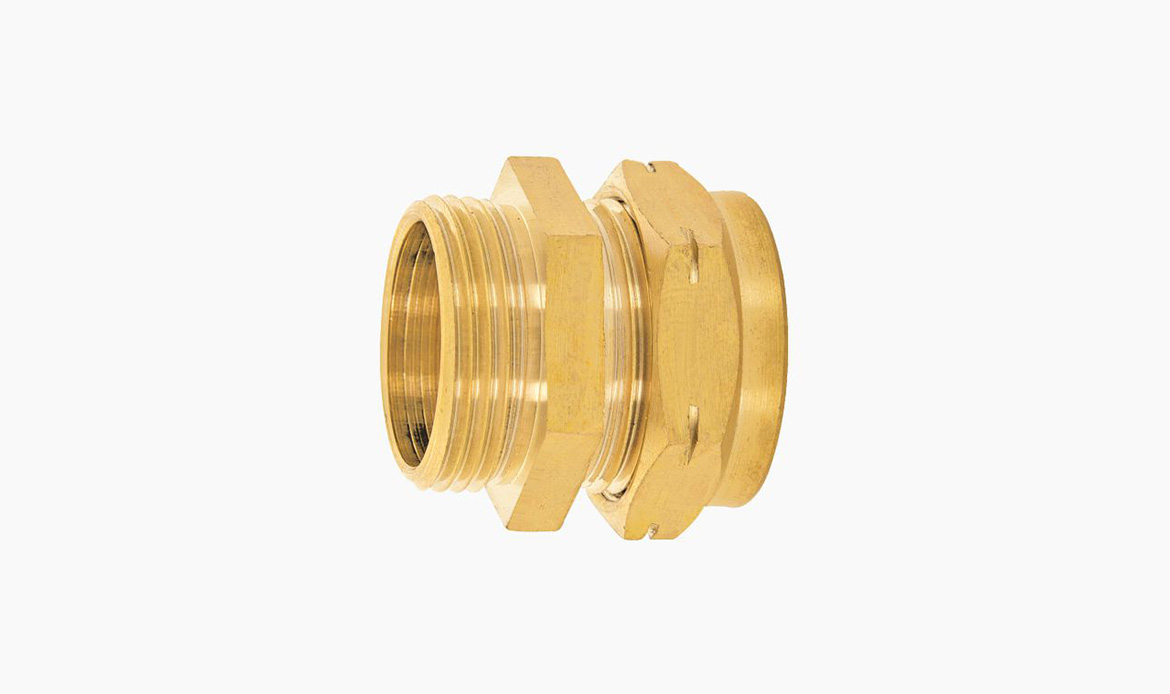

T.R.S. GLAND

Material : Brass
Finish : NICKEL PLATED
Size : PG 7 TO PG 48



Material : Brass
Finish : SELF PLATED
Size : 20mm, 25mm, 32mm, 1 1/2", 2
