RUPAM E1W Type brass indoor and outdoor cable gland is used with Single Wire Armour (SWA) cable providing a seal on the cable inner sheath and the cable outer sheath. A detachable armour cone and clamping ring arrangement allows the cable to be easily disconnect from the equipment, for maintenance etc. This feature also facilitate remote make off procedures when the termination is to be conducted in areas of restricted access. Separate tightening actions for the inner displacement seal and the armour termination affords maximum control cover the pressure applied to the cable inner bedding. This cable gland is designed and tested as per BS 6121:Part 1:1989. It meets the requirement of EN 50262:1999.
| TECHNICAL INFORMATION | |
| Type | E1W |
| Design Specification | BS 6121: Part 1: 1989 |
| Ingress Protection Rating | IP54 |
| Standard Gland Material | Brass |
| Optional Gland Material | Nickel Plated Brass |
| Cable Type | Single Wire Armour (SWA) |
| Sealing Area(s) | Cable Outer Sheath |
| Clamping Sealing Area(s) | Cable Inner Bedding & Cable Outer Sheath |
| Available Accessories | Steel/Brass LocknutPVC/LSF Shroud Brass Earth Tag, Nylon Washer, Brass Reducer |

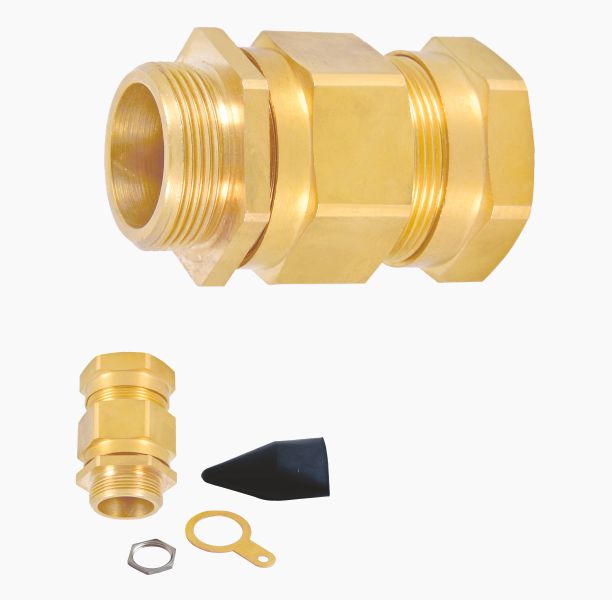

CABLE GLAND KIT CONTAINS:
Gland
Lock Nut
Shroud
Earth Tag
Kit contains two sets of
above items up to 32mm sizes & one set from 40mm and above sizes

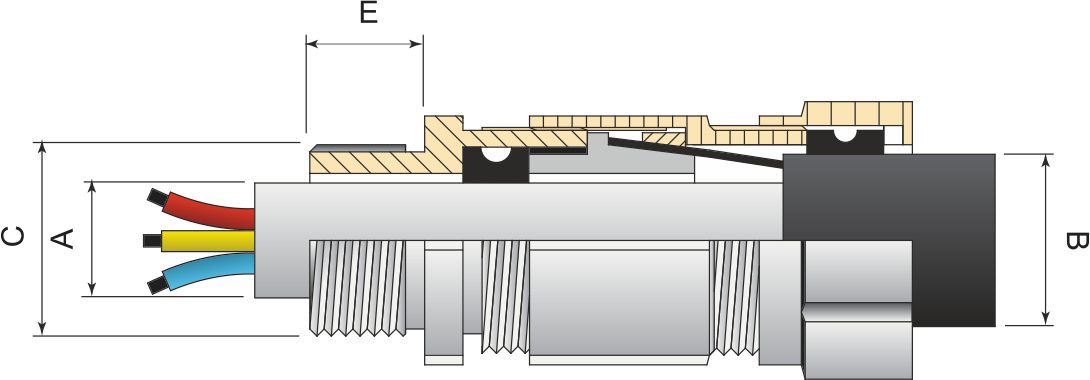

| Gland Size | Entry Thread | Cable Acceptance Detail | Across Flat |
Across Corner |
|||
| Dia. C | Length Minimum E |
Dia. "A" Max |
Dia. "B" Max |
Armour Diameter |
|||
|
20 S
|
20
|
10
|
8.00 - 11.50
|
12.00 - 16.00
|
0.90/1.25
|
22.00
|
25.00
|
|
20 L
|
20
|
10
|
11.00 - 14.00
|
15.50-20.00
|
0.90/1.25
|
26.00
|
29.00
|
|
25 S
|
25
|
10
|
12.00 - 17.00
|
17.50-23.00
|
1.25/1.60
|
31.50
|
35.50
|
|
25 L
|
25
|
10
|
14.00 - 20.00
|
23.00 - 26.50
|
1.25/1.60
|
34.00
|
38.00
|
|
32 S
|
32
|
10
|
18.00 - 23.00
|
25.00 - 30.00
|
1.60/2.00
|
38.50
|
43.50
|
|
32 L
|
32
|
10
|
20.00 - 26.00
|
26.70 - 33.00
|
1.60/2.00
|
41.00
|
46.00
|
|
40 S
|
40
|
15
|
23.00 - 30.00
|
32.00 - 37.50
|
1.60/2.00
|
46.00
|
51.00
|
|
40 L
|
40
|
15
|
26.00 - 32.20
|
33.00 - 40.50
|
1.60/2.00
|
49.50
|
56.00
|
|
50 S
|
50
|
15
|
32.50-38.50
|
39.50-46.00
|
2.00/2.50
|
57.00
|
64.00
|
|
50 L
|
50
|
15
|
36.50 - 44.00
|
46.00 - 52.00
|
2.00/2.50
|
61.00
|
68.00
|
|
63 S
|
63
|
15
|
43.50 - 50.00
|
52.00 - 59.00
|
2.50
|
70.00
|
79.00
|
|
63 L
|
63
|
15
|
49.00 - 56.00
|
58.50 - 66.00
|
2.50
|
78.00
|
86.00
|
|
75 S
|
75
|
15
|
54.50 - 62.00
|
65.00 - 72.00
|
2.50
|
84.00
|
95.00
|
|
75 L
|
75
|
15
|
61.00 - 68.00
|
71.50 - 78.00
|
2.50
|
92.00
|
102.00
|
