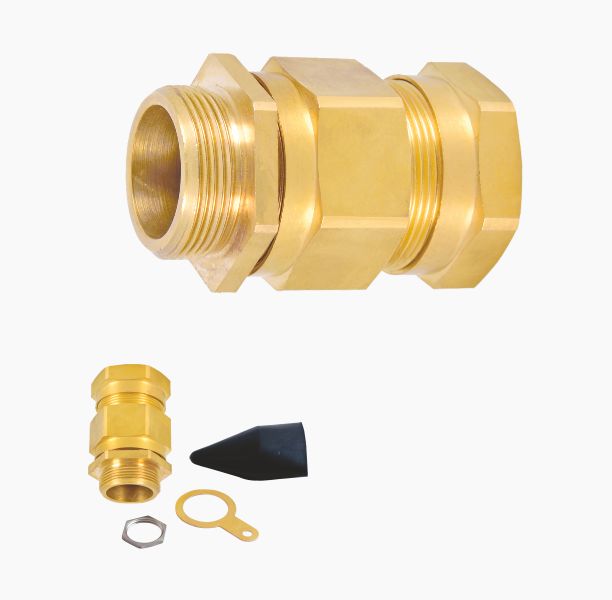

RUPAM ElXType brass indoor and outdoor cable gland is used with all types of Wire Braid Armour, Strip Armour, Pliable Wire Armour & Steel Tape Armour (STA) cable providing a seal on the cable inner bedding and cable outer sheath. The cable gland provides mechanical cable retention and electrical continuity via armour termination. A detachable armour cone clamping ring arrangement allows the cable to be easily disconnect from the equipment, for maintenance etc. This feature also facilitate remote make off procedures when the termination is to be conducted in areas of restricted access. Separate tightening actions for the inner displacement seal and the armour termination afford maximum control over the pressure applied to the cable inner bedding. This cable gland is designed as per BS 6121:Part 1:1989.
| TECHNICAL INFORMATION | |
| Type | E1X |
| Design Specification | BS 6121: Part 1: 1989 |
| Standard Gland Material | Brass |
| Optional Gland Material | Nickel Plated Brass |
| Cable Type | Wire Braid Armour or Screened Flexible Wire Braid (e.g.CY/SY), Pliable Wire Armour(PWA) Steel Tape Armour (STA) |
| Armour Area(s) | Detachable Armour Cone & Clamping Ring |
| Sealing Area(s) | Cable Inner Bedding & Cable Outer Sheath |
| Available Accessories | Steel/Brass Locknut,PVC/LSF Shroud Brass Earth Tag, Nylon Washer, Brass Reducer |
CABLE GLAND KIT CONTAINS:
Gland
Lock Nut
Shroud
Earth Tag
Kit contains two sets of
above items up to 32mm sizes & one set from 40mm and above sizes

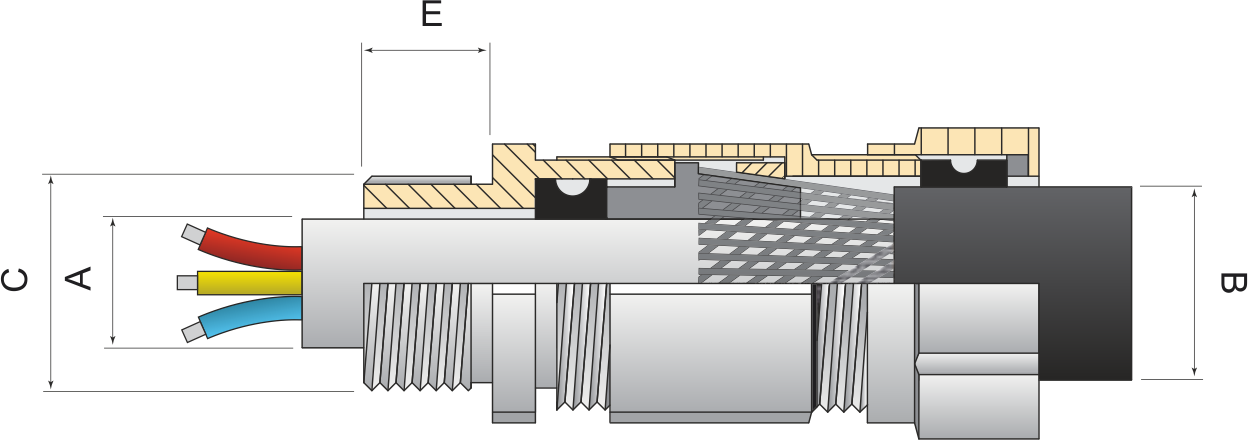

| Gland Size | Entry Thread | Cable Acceptance Detail | Across Flat |
Across Corner |
|||
| Dia. C | Length Minimum E |
Dia. "A" Max |
Dia. "B" Max |
Armour Diameter |
|||
|
20 S
|
20
|
10
|
8.00-11.50
|
12.00 - 16.00
|
0.40/0.80
|
22.00
|
25.00
|
|
20 L
|
20
|
10
|
11.00 - 14.00
|
15.50 - 20.00
|
0.60/1.00
|
26.00
|
29.00
|
|
25 S
|
25
|
10
|
12.00 - 17.00
|
17.50 - 23.00
|
0.60/1.10
|
31.50
|
35.50
|
|
25 L
|
25
|
10
|
14.00 - 20.00
|
23.00 - 26.50
|
0.60/1.10
|
34.00
|
38.00
|
|
32 S
|
32
|
10
|
18.00 - 23.00
|
25.00 - 30.00
|
0.60/1.20
|
38.50
|
43.50
|
|
32 L
|
32
|
10
|
20.00 - 26.00
|
26.70 - 33.00
|
0.60/1.20
|
41.00
|
46.00
|
|
40 S
|
40
|
15
|
23.00 - 30.00
|
32.00 - 37.50
|
0.60/1.20
|
46.00
|
51.00
|
|
40 L
|
40
|
15
|
26.00 - 32.20
|
33.00 - 40.50
|
0.60/1.20
|
49.50
|
56.00
|
|
50 S
|
50
|
15
|
32.50 - 38.50
|
39.50 - 46.00
|
0.60/1.50
|
57.00
|
64.00
|
|
50 L
|
50
|
15
|
36.50 - 44.00
|
46.00-52.00
|
0.80/1.50
|
61.00
|
68.00
|
|
63 S
|
63
|
15
|
43.50 - 50.00
|
52.00 - 59.00
|
0.80/1.50
|
70.00
|
79.00
|
|
63 L
|
63
|
15
|
49.00 - 56.00
|
58.50 - 66.00
|
0.80/1.50
|
78.00
|
86.00
|
|
75 S
|
75
|
15
|
54.50-62.00
|
65.00 - 72.00
|
0.80/1.50
|
84.00
|
95.00
|
|
75 L
|
75
|
15
|
61.00 - 68.00
|
71.50 - 78.00
|
0.80/1.50
|
92.00
|
102.00
|
