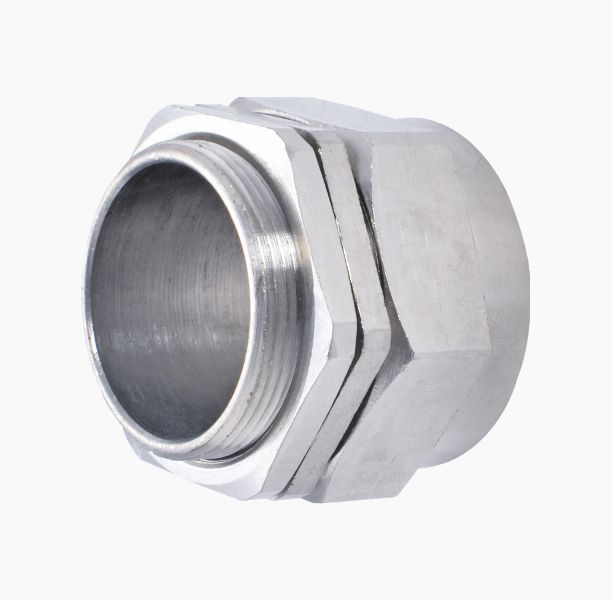

RUPAM Alco G Type brass indoor cable gland for use with all types of Single Wire Armour (SWA) cable providing mechanical cable retention and electrical continuity thru armour wire termination. The Aico G design offers the benefit of a longer body to protect the armour wires from impact. The Aico G range of industrial cable gland is designed as per BS6121:1989
| TECHNICAL INFORMATION | |
| Type | G |
| Design Specification | BS 6121: Part 1: 1989 |
| Standard Gland Material | Nickel Plated Brass |
| Cable Type | Single Wire Armour (SWA) |
| Armour Clamping | Clamping Ring |
| Gland Size |

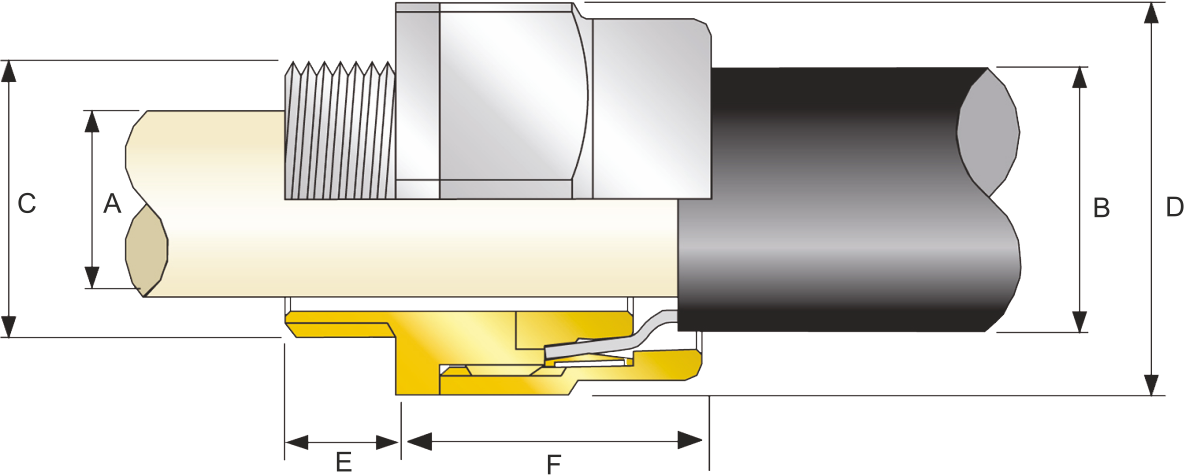

Entry Thread | Cable Acceptance Detail | Across Flat |
Across Corner |
|||
| Dia. C | Length Minimum E |
Dia. "A" Max |
Dia. "B" Max |
Armour Diameter |
|||
|
204
|
20
|
9
|
11.50
|
17.00
|
0.90/1.25
|
21.50
|
24.50
|
|
206
|
20
|
9
|
13.80
|
20.00
|
0.90/1.25
|
24.00
|
27.30
|
|
254
|
25
|
9
|
16.50
|
22.00
|
1.25/1.60
|
27.00
|
30.50
|
|
256
|
25
|
9
|
18.80
|
24.50
|
1.25/1.60
|
30.50
|
34.00
|
|
324
|
32
|
9
|
22.80
|
29.00
|
1.60/2.00
|
34.50
|
39.00
|
|
326
|
32
|
10
|
26.50
|
33.00
|
1.60/2.00
|
39.00
|
44.00
|
|
405
|
40
|
10
|
33.00
|
40.50
|
1.60/2.00
|
47.50
|
54.00
|
|
503
|
50
|
11
|
39.00
|
47.00
|
2.00/2.50
|
52.00
|
58.00
|
|
505
|
50
|
11
|
44.00
|
52.00
|
2.00/2.50
|
53.00
|
59.50
|
|
636
|
63
|
15
|
55.00
|
65.00
|
2.50
|
70.50
|
79.00
|
|
753
|
75
|
15
|
61.50
|
71.00
|
2.50
|
78.50
|
88.00
|
|
755
|
75
|
15
|
67.50
|
77.00
|
2.50
|
85.00
|
95.20
|
