RUPAM CXT type brass indoor and outdoor cable gland is unarmoured cable gland. This gland provides sealing on the cable outer sheath. It also provides mechanical cable retention and electrical continuity thru internal pig tail termination of the flexible wire braid. The RUPAM CXT range of industrial cable gland is designed as per
| TECHNICAL INFORMATION | |
| Type | E1X |
| Design Specification | BS 6121: Part 1: 1989 |
| Standard Gland Material | Brass |
| Optional Gland Material | Nickel Plated Brass |
| Cable Type | Unarmoured |
| Armour Area(s) | Cable Outer Sheath |
| Available Accessories | Steel/Brass Locknut, PVC/LSF Shroud Brass Earth Tag, Nylon Washer, Brass Reducer |

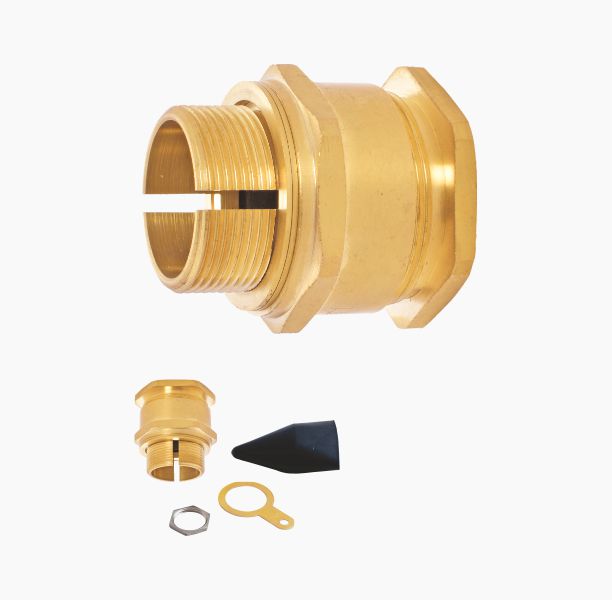

CABLE GLAND KIT CONTAINS:
Gland
Lock Nut
Shroud
Earth Tag
Kit contains two sets of
above items up to 32mm sizes & one set from 40mm and above sizes

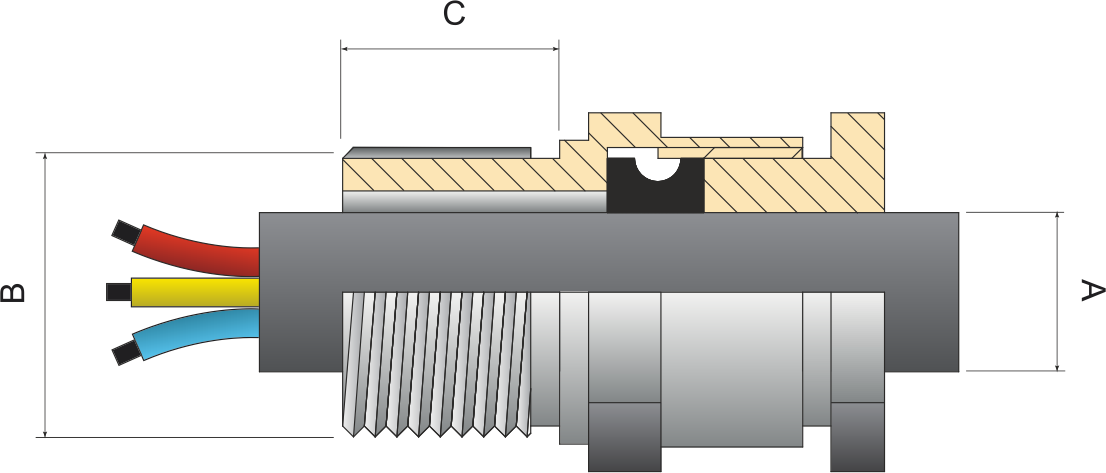

| Gland Size |
Entry Thread | Cable Acceptance Detail | Across Corner |
|||
| Dia. C | Length Minimum E |
Dia. "A" Max |
Dia. "B" Max |
Across Flat |
||
|
20 S
|
20
|
15
|
12.00
|
16.00
|
22.00
|
25.00
|
|
20 L
|
20
|
15
|
14.50
|
20.00
|
25.50
|
28.50
|
|
25 L
|
25
|
15
|
20.50
|
27.00
|
34.00
|
38.00
|
|
32 L
|
32
|
15
|
26.50
|
33.00
|
40.00
|
45.00
|
|
40 L
|
40
|
20
|
33.50
|
41.00
|
46.00
|
51.00
|
|
50 L
|
50
|
20
|
44.00
|
52.60
|
60.00
|
67.00
|
